The metrics endpoint

For an overview of other options for gathering statistics on Ambassador Edge Stack, see the Statistics and Monitoring overview.

Each Ambassador Edge Stack pod exposes statistics and metrics for that pod at http://{POD}:8877/metrics. The response is in the text-based Prometheus exposition format.

Understanding the statistics

The Prometheus exposition format includes special "HELP" lines that make the file self-documenting as to what specific statistics mean.

• envoy_*: See the Envoy documentation.
• ambassador_* (new in 1.7.0):
  • ambassador_edge_stack_* (not present in Emissary-ingress):
    • ambassador_edge_stack_go_*: See [promethus.NewGoCollector()][].
    • ambassador_edge_stack_promhttp_* See promhttp.Handler().
    • ambassador_edge_stack_process_*: See [promethus.NewProcessCollector()][]..
  • ambassador_*_time_seconds (for * = one of aconf, diagnostics, econf, fetcher, ir, or reconfiguration): Gauges of how long the various core operations take in the diagd process.
  • ambassador_diagnostics_(errors|notices): The number of diagnostics errors and notices that would be shown in the diagnostics UI or the Edge Policy Console.
  • ambassador_diagnostics_info: Info about the Ambassador Edge Stack install; all information is presented in labels; the value of the Gauge is always "1".
  • ambassador_process_*: See prometheus_client.ProcessCollector.

Polling the :8877/metrics endpoint with Prometheus

To scrape metrics directly, follow the instructions for Monitoring with Prometheus and Grafana.

Using Grafana to visualize statistics gathered by Prometheus

Sample dashboard

We provide a sample Grafana dashboard that displays information collected by Prometheus from the :8877/metrics endpoint.

Just Envoy information

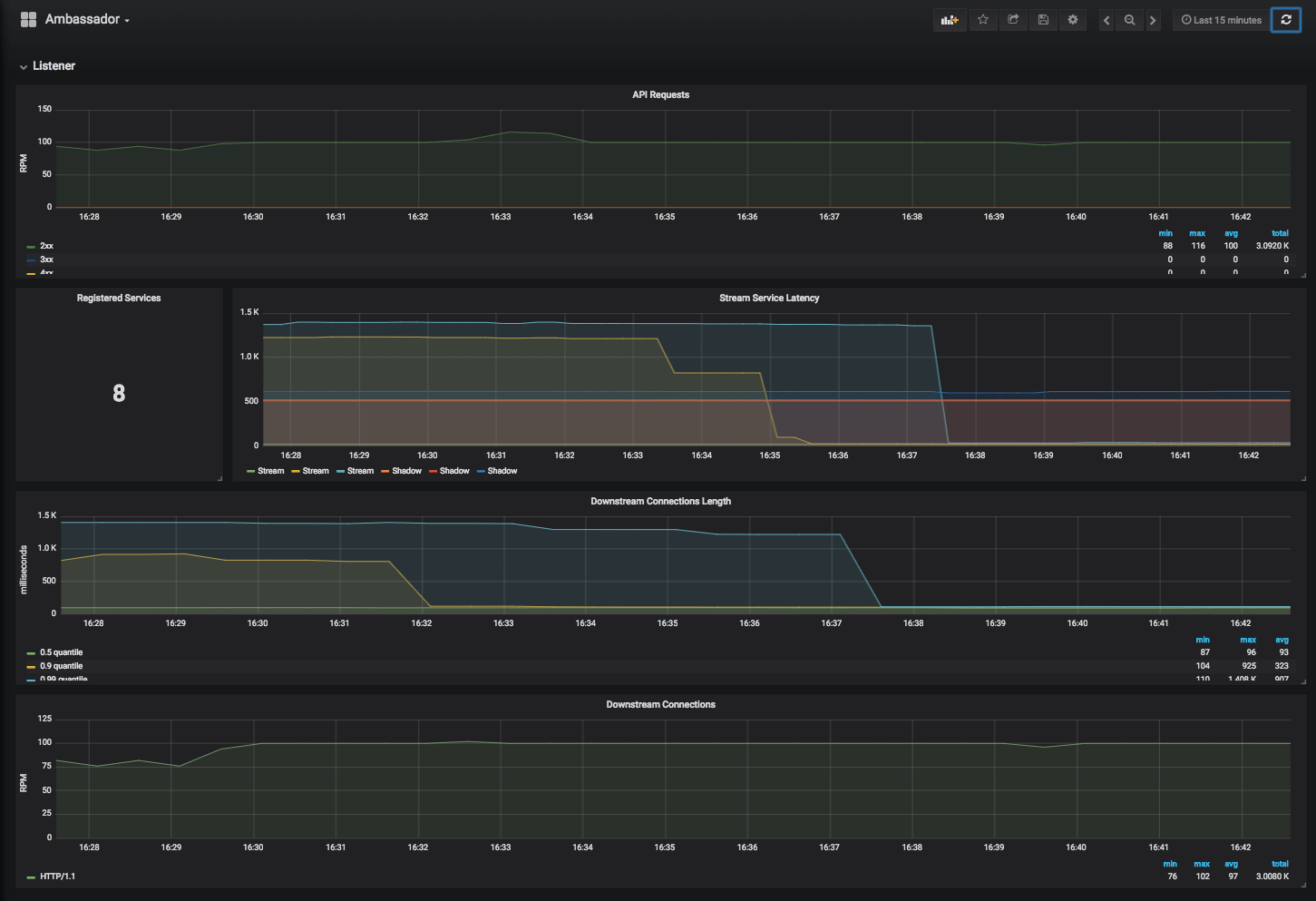

Alex Gervais has written a template Ambassador Edge Stack dashboard for Grafana that displays information collected by Prometheus either from the :8877/metrics endpoint, or from Envoy over StatsD. Because it is designed to work with the Envoy StatsD set up, it does not include any of the ambassador_* statistics; because of this, we recommend using the other sample dashboard above.
