The metrics endpoint
For an overview of other options for gathering statistics on Ambassador Edge Stack, see the Statistics and Monitoring overview.
Each Ambassador Edge Stack pod exposes statistics and metrics for that pod at
http://{POD}:8877/metrics
. The response is in the text-based
Prometheus exposition format.
Understanding the statistics
The Prometheus exposition format includes special "HELP" lines that make the file self-documenting as to what specific statistics mean.
envoy_*
: See the Envoy documentation.ambassador_*
(new in 1.7.0):ambassador_edge_stack_*
(not present in Emissary-ingress):ambassador_edge_stack_go_*
: See [promethus.NewGoCollector()
][].ambassador_edge_stack_promhttp_*
Seepromhttp.Handler()
.ambassador_edge_stack_process_*
: See [promethus.NewProcessCollector()
][]..
ambassador_*_time_seconds
(for*
= one ofaconf
,diagnostics
,econf
,fetcher
,ir
, orreconfiguration
): Gauges of how long the various core operations take in the diagd process.ambassador_diagnostics_(errors|notices)
: The number of diagnostics errors and notices that would be shown in the diagnostics UI or the Edge Policy Console.ambassador_diagnostics_info
: Info about the Ambassador Edge Stack install; all information is presented in labels; the value of the Gauge is always "1".ambassador_process_*
: Seeprometheus_client.ProcessCollector
.
Polling the :8877/metrics
endpoint with Prometheus
To scrape metrics directly, follow the instructions for Monitoring with Prometheus and Grafana.
Using Grafana to visualize statistics gathered by Prometheus
Sample dashboard
We provide a sample Grafana dashboard
that displays information collected by Prometheus from the
:8877/metrics
endpoint.
Just Envoy information

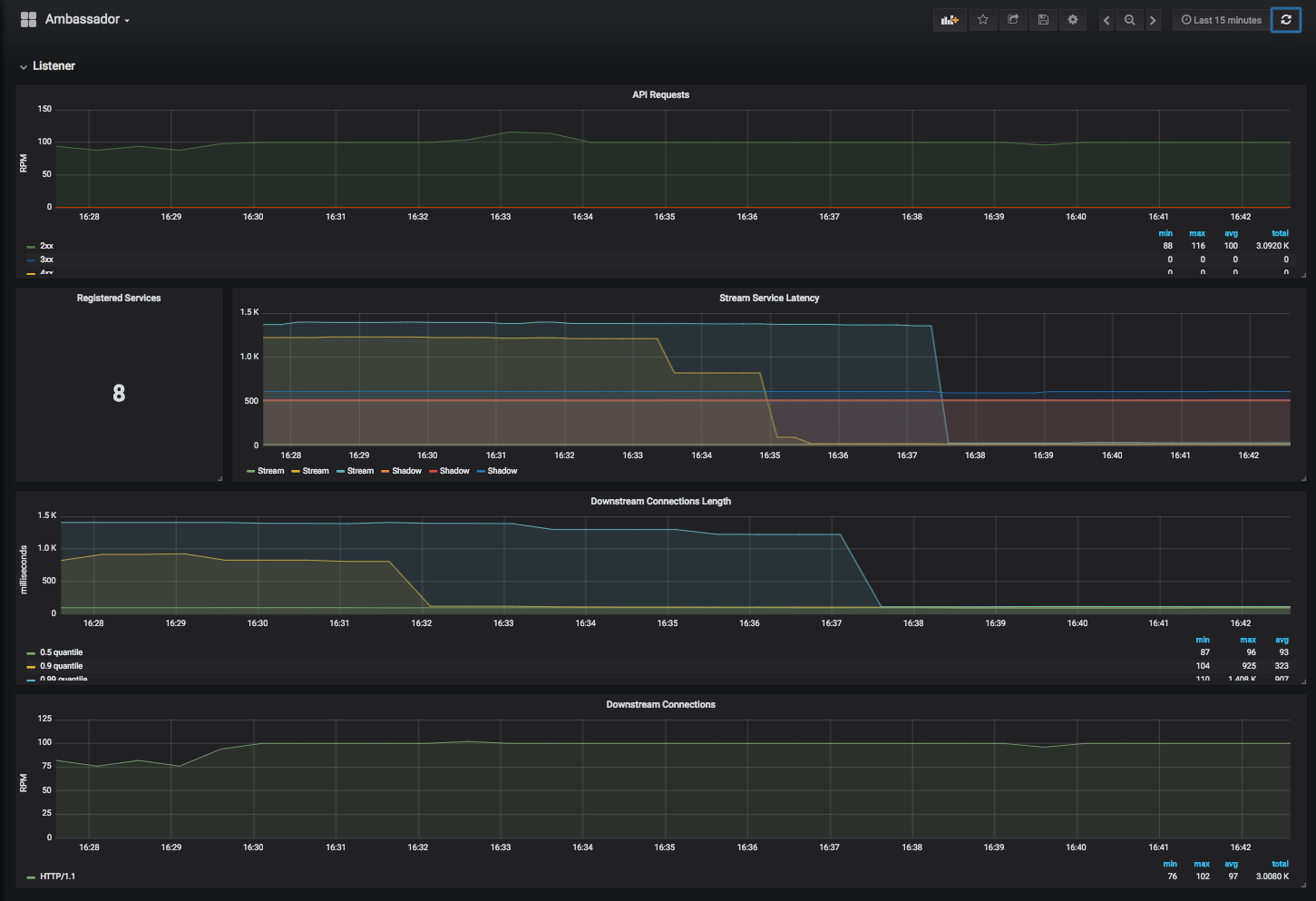

Alex Gervais has written a template Ambassador Edge Stack dashboard for
Grafana that displays information collected by Prometheus either
from the :8877/metrics
endpoint, or from Envoy over
StatsD. Because it is designed to work with
the Envoy StatsD set up, it does not include any of the ambassador_*
statistics; because of this, we recommend using the other sample
dashboard above.
